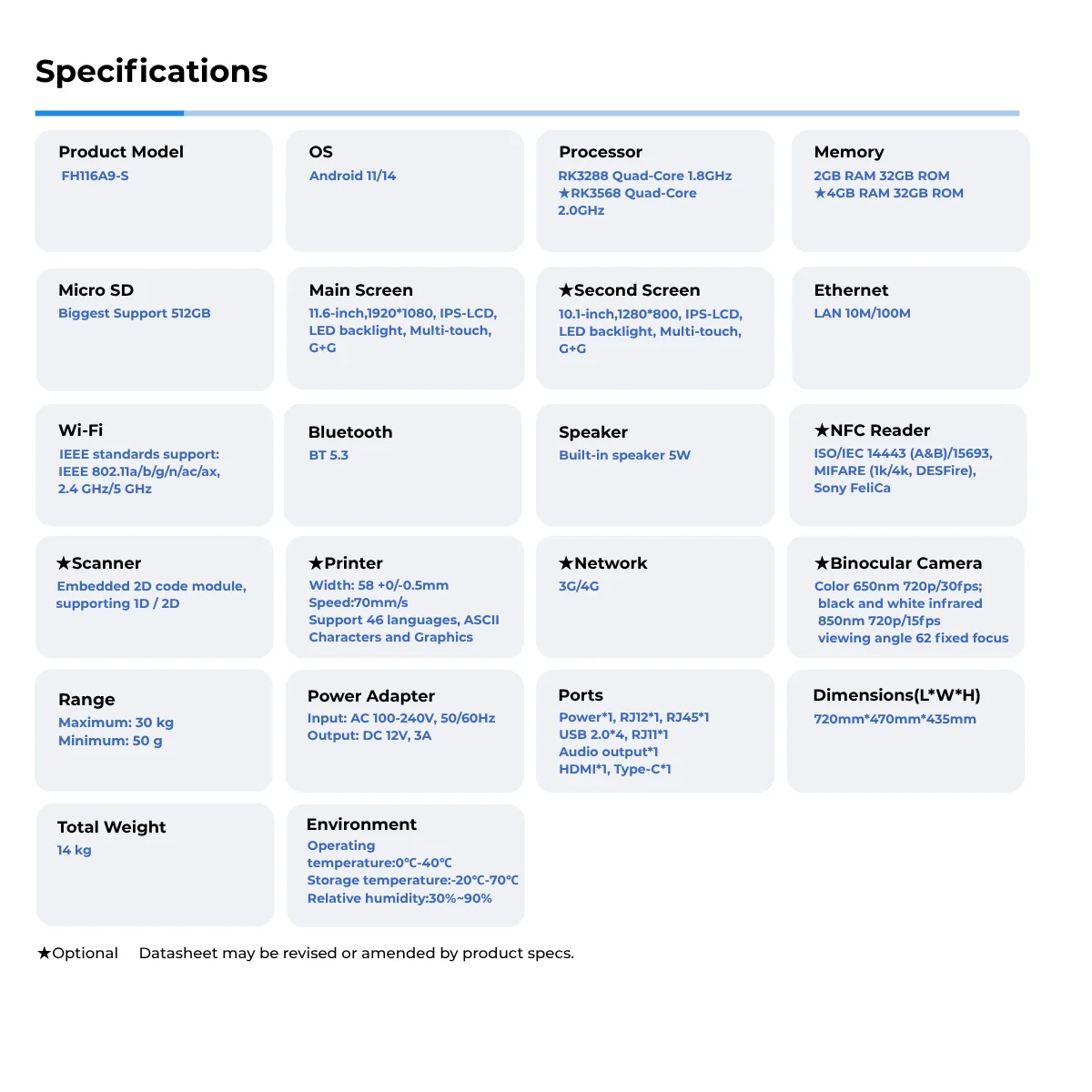

| Standard Configuration | CPU | RK3568 Quad-core Cortex-A55 up to 2.0GHz |
| RAM | SAMSUNG DDR4 2GB (4GB optional) | |
| ROM | SAMSUNG EMMC5.1 8GB （16/32/64GB optional） Card Slot Micro SD*1(Biggest Support 32G) | |

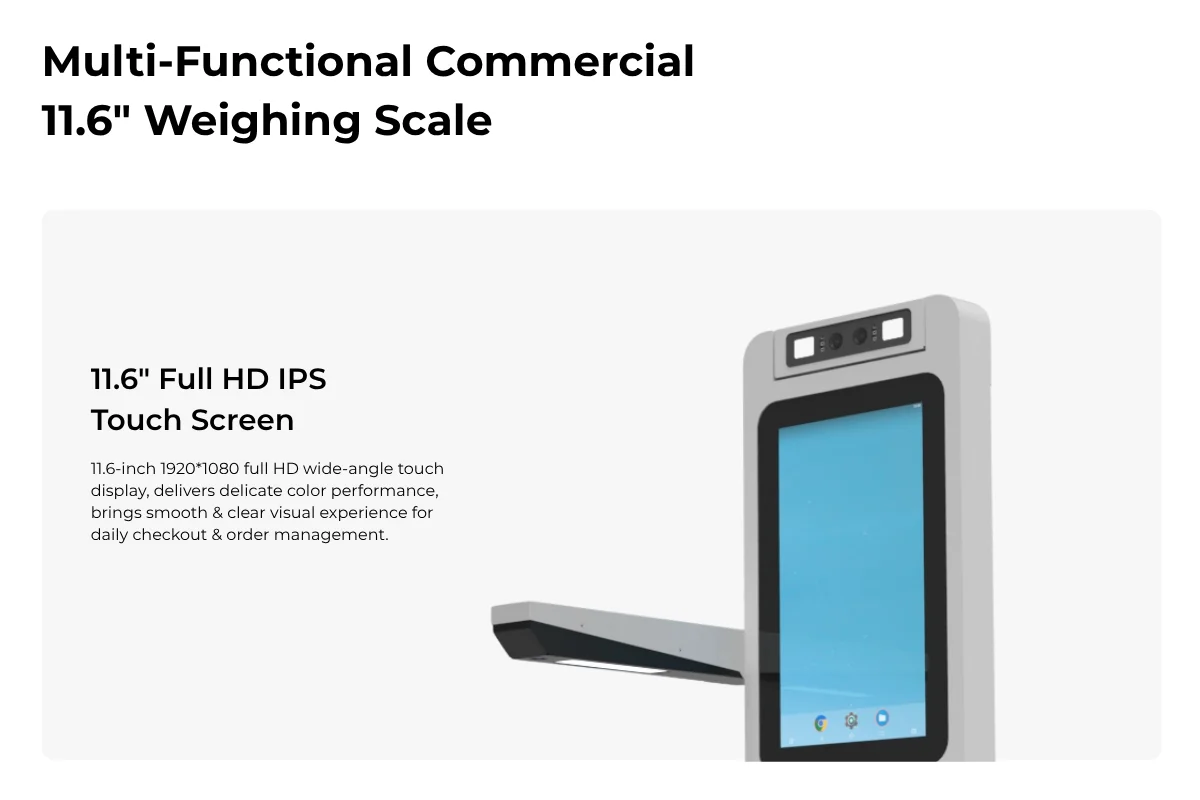

| Display | BOE 11.6 inch IPS-LCD,LED Backlight,1366*768, | |
| TP | Multi-touch,,G+G | |
| Wifi | 2.4GHz 802.11/b/g/n | |
| Speaker | Built-in speaker 5W*1 Audio Playback | |
| Video | Video Hardware Decoding,Support HD1080p; Support MPEG-2/4, H.263/4, Divx, VC1, RV10 and other compression formats; Support HTML web pages; Support video playback / video stream. | |
| Bluetooth | 2.4GHz Bluetooth 4.0Dual mode of 3Mbps | |
| Ethernet | 10M/100M | |
| Interfaces | 1*DC,1*LAN;Micro USB *1,RJ11*1, RJ12*1,USB Host*4,HDMI *1 | |
| Optional | Second Screen | 11.6 inches IPS TFT LCD, Android presentation api, support text, vedio, photo |

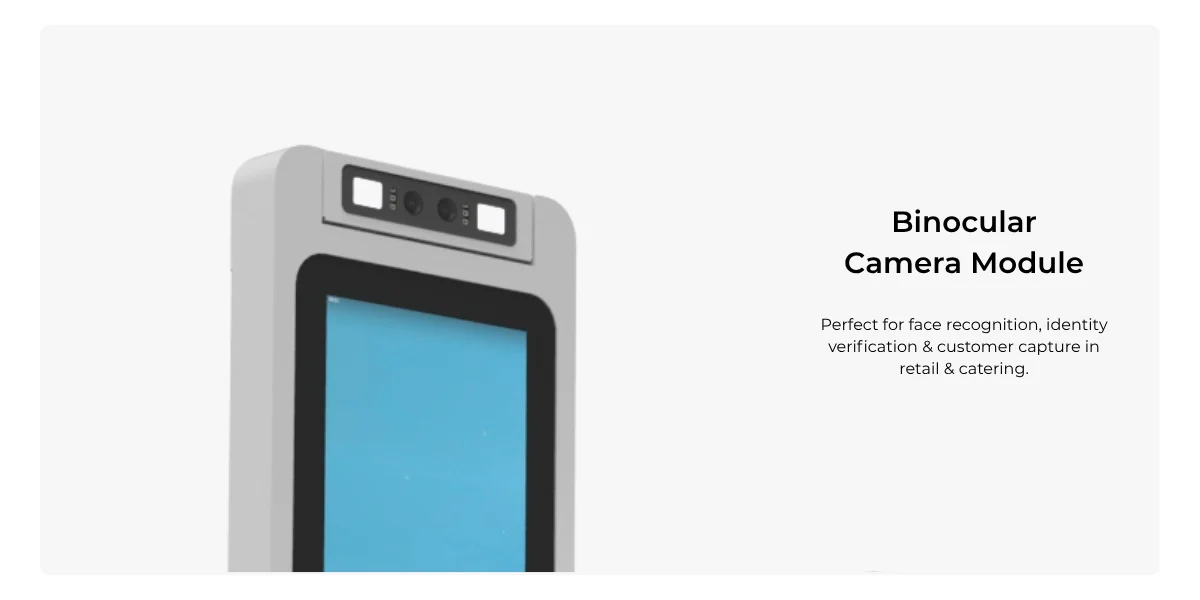

| Binocular camera | Color 650nm 720p / 30fps;black and white infrared 850nm 720p / 15fps viewing angle 62 fixed focus | |
| Object camera | 2MP.1920*1080 High color reduction | |
| Weighing function | 0-30kg, Accuracy 5g | |

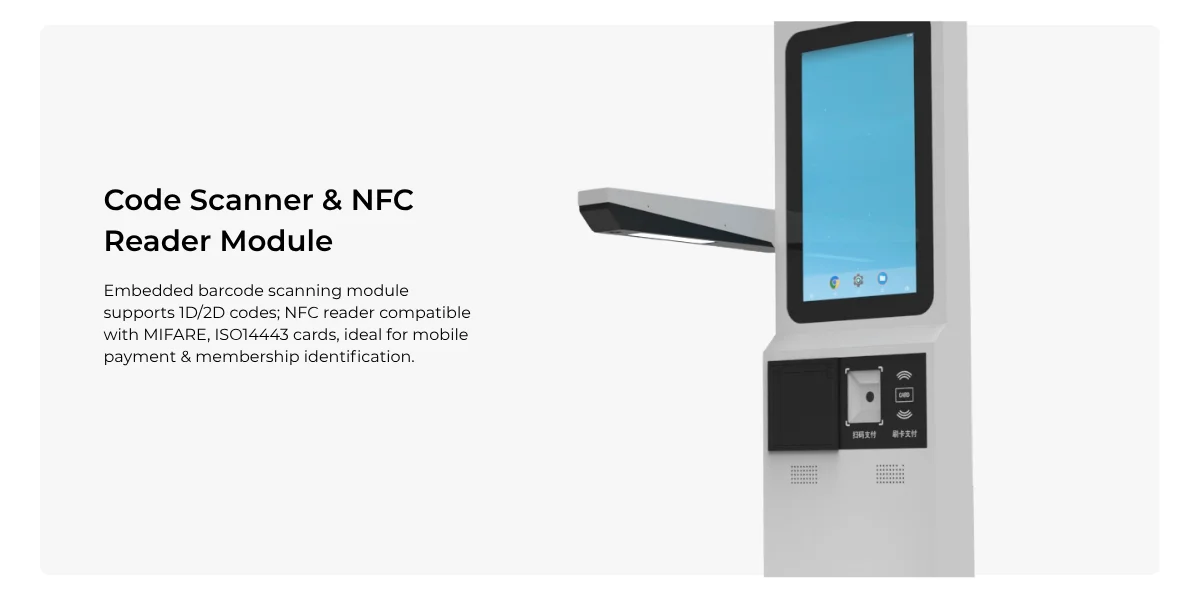

| Code Scan | Embedded 2D code module, supporting 1D / 2D | |
| NFC | ISO/IEC 14443A,ISO/IEC 14443B,ISO/IEC 15693,MIFARE 1K/4K ,MIFARE DESFire,Sony FeliCa | |
| 4G | LTE (FDD) B1/B2/B3/B5/B7/B8/B20 DC-HSPA+/HSPA+/HSPA/UMTS dual-band B1/B2/B5/B8 EDGE/ GPRS/ GSM quad-band 850/900/1800/1900 MHz DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps LTE FDD: Downlink:100 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT3) | |
| Other Parameters | Machine Size | 720*470*435mm |
| N.W. | 10Kg | |
| Color | Black | |
| Package Size | / | |
| OS | Android 11 Kernel 4.19.219 | |
| Multi Application | Support multi application architecture,can simultaneously store and run multiple applications. | |
| Work Environment | Operating temperature:0℃ ～ 40℃ Storage temperature : -20℃ ～ 70℃ Relative humidity: 30℅～90℅ | |
| Power Adapter | Input:100V～240VAC，50～60HZ Output:12VDC，5A |
